Application

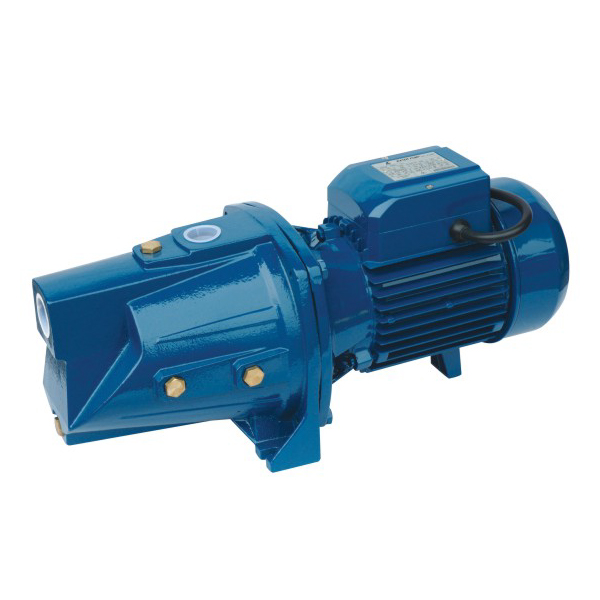

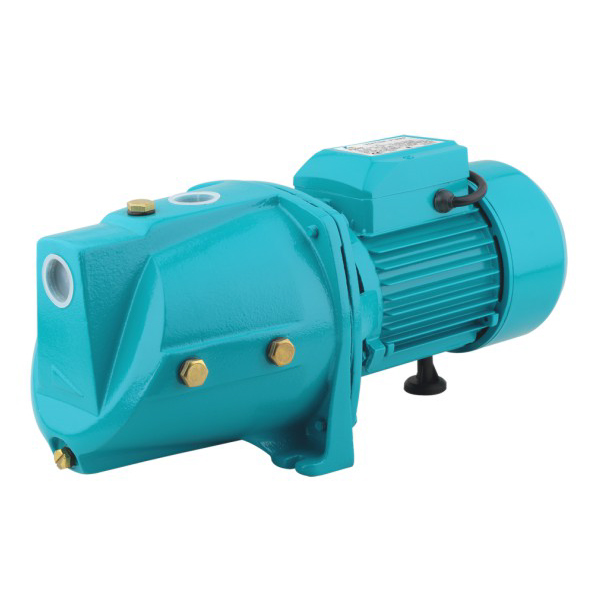

MJSW series self-priming clean water pumps combine the functions and advantages
of centrifugal pumps and self-priming pumps. Therefore, the pumps have the features
of majorizing, taking short time in self-priming,reliable,compact, with high discharge
head, high suction head and high efficiency etc. They can be widely used in mining
enterprises,water supply for high buildings, agricultural irrigation and water treatment
etc.
Operating Conditions
Max.liquid temperature:+60℃
Max.amblent temperature:+40℃
Max.suct+8m
Motor
Single-phase
Insulation class: B
Protection: IP44
Material
Pump Body: cast iron
Motor housing: aluminum
End plate: cast iron
Impeller: brass/aluminum/ppo
Shaft with rotor:45#steel
Mechanical seal: Graphite to ceramic.
Bearing: C&U or local bearing
100% Sufficient Capacity
Long cycle life as nominal
Good quality materials & assembling
